The Science of Spheroidization: Why Low-Speed Wire Feeding Achieves Higher Mg Absorption?

Scientific Control of Wire Feeding: The Secret to High Magnesium Absorption at Low Speeds

In ductile iron production, the feeding speed (Vf) of cored wire is widely considered the most critical factor for Magnesium (Mg) recovery. Traditional heat conduction theories suggest that 0.42mm steel-sheathed wire should melt in less than 0.6 seconds, requiring high-speed feeding (above 70m/min). However, empirical data shows that higher absorption is often achieved in the low-speed range of 25-42 m/min. Today, we analyze the physics behind this phenomenon.

1. The "Leidenfrost Effect" in Molten Iron

Why doesn't the thin steel sheath melt instantly? The secret lies in the Magnesium Vapor Film Thermal Resistance Model.

* Vapor Barrier: As the wire enters the molten iron, the magnesium inside begins to gasify, creating a "vapor film" between the iron and the steel strip.

* Thermal Resistance: This gas film acts as a powerful insulator (the Leidenfrost Effect), extending the melting time by 1 to 2.5 times.

* The Result: This effect allows the wire to reach an effective reaction depth of 0.9m to 1.2m even at lower mechanical speeds.

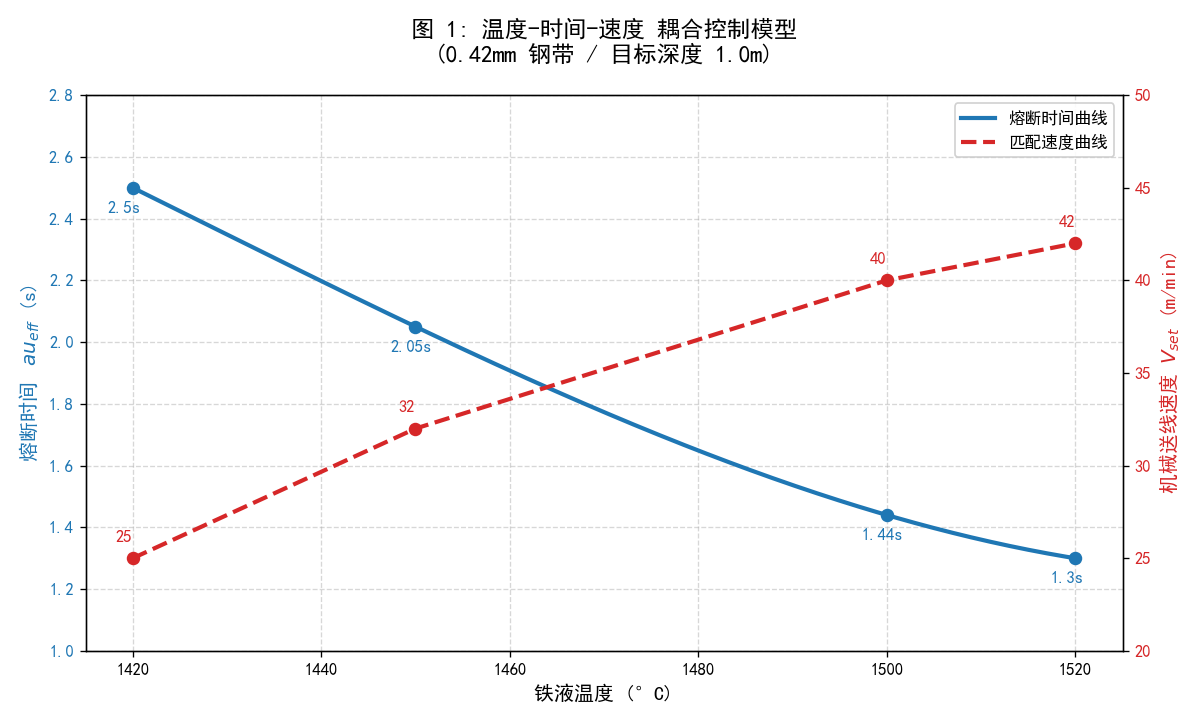

2. Quantifying the Relationship: Temperature vs. Speed

Scientific calculations provide a precise roadmap for operators to adjust feeding speeds based on the molten iron temperature:

* At 1420°C: The optimal matching speed is approximately 25 m/min.

* At 1450°C: The speed should be increased to 33 m/min.

* At 1500°C: To maintain stable absorption, the speed must reach 42 m/min.

   Using speeds outside these calculated ranges leads to surface splashing or "fading" due to premature magnesium release.

3. The Evolution: From Alloy Cored Wire to Pure Mg Wire

Beyond speed control, the material itself is evolving. Recent research into Pure Magnesium Wire (coated with refractory layers) offers new advantages:

* Cost Efficiency: By removing the steel sheath entirely, production is simplified and costs are reduced.

* Lower Addition Rates: Spheroidization can be achieved with addition amounts as low as 0.12%, maintaining high quality with less material.

* Wider Tolerance: Pure Mg wire allows for a broader control range of Silicon (Si) and Sulfur (S) in the base iron.

4. Practical Guidelines for Foundry Operators

To implement these findings, we recommend:

* Ladle Depth: Ensure the molten iron level is deep enough to accommodate the calculated reaction path.

* Speed Selection: For high-temperature treatments (>1550°C), select equipment capable of 60 m/min to ensure the wire reaches the bottom before exploding.

* Strip Thickness: Monitor the steel strip thickness (standard 0.42mm), as variations directly impact the melting time and required speed.

Conclusion:

Modern spheroidization is moving away from "trial and error" toward precise metallurgical engineering. By understanding the thermal resistance of magnesium vapor and matching feeding speeds to temperature, foundries can achieve more stable results and significant cost savings.
