Precision Spheroidization: Scientific Feeding Speed Control for 0.42mm Cored Wire

Precision Spheroidization: Scientific Feeding Speed Control for 0.42mm Cored Wire

In the production of ductile iron, achieving a stable and high magnesium (Mg) absorption rate is critical for the spheroidization process. Conventional theories often assume that thin 0.42mm steel belt cored wires require high-speed feeding (above 70 m/min) to prevent premature melting. However, research by Shandong Xinlingfeng New Materials Technology Co., Ltd. reveals that high efficiency can be maintained even at lower speed intervals (25–42 m/min).

1. The "Heat Shield" Effect: Why Low Speed Works

The core of this phenomenon is the Leidenfrost Effect. As the cored wire enters the 1420°C–1520°C molten iron, magnesium vaporizes before the steel skin melts. This creates a magnesium vapor film that acts as a "thermal resistance" barrier or "heat shield," significantly reducing the heat transfer coefficient. This mechanism extends the wire's survival time in the melt by 1 to 2.5 times.

2. Precise Speed-Temperature Mapping

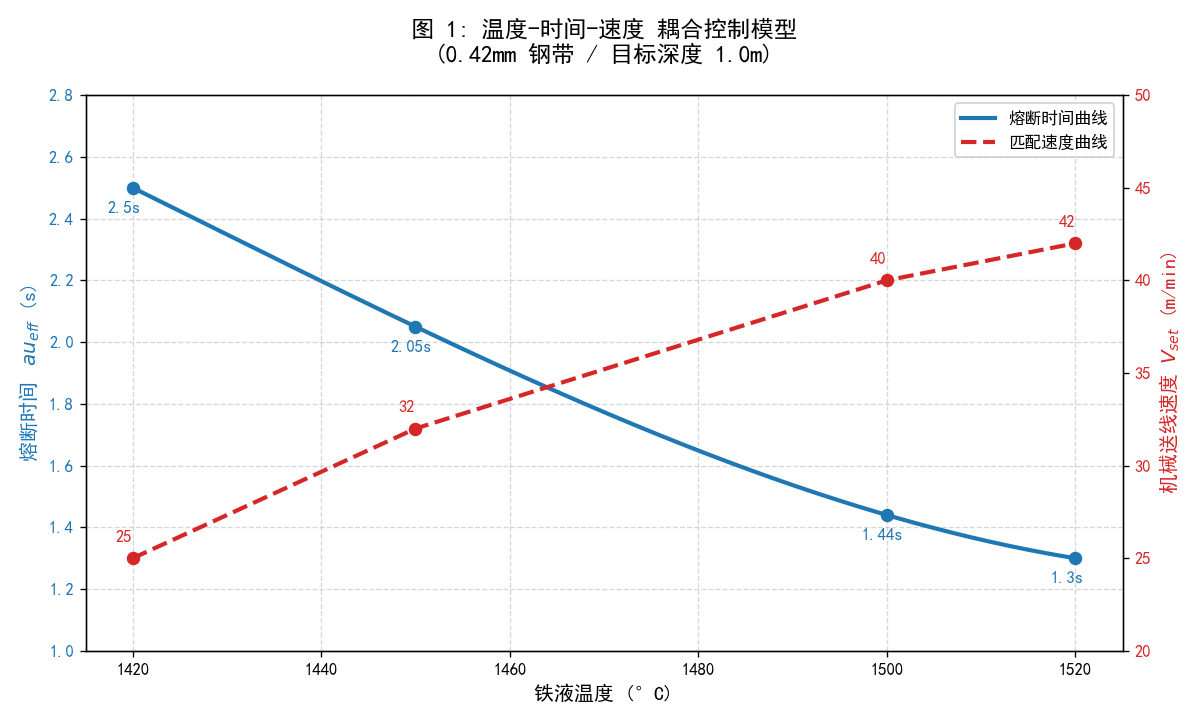

Our research has established a precise "Temperature-Speed" coupling model to ensure the "melting explosion" occurs at the optimal effective reaction depth (0.9m- 1.1m). Based on the molten iron temperature, feeding speeds should be adjusted as follows:

3. The Power of Pressure: Effective Reaction Rate (R_egg)

The effective reaction rate (R_egg) is not just about feeding speed; it is highly correlated with the hydrostatic pressure at the explosion point. A deeper reaction point leads to higher pressure, smaller bubbles, and a larger surface area for mass transfer. Data verification shows that by optimizing the speed from 26 m/min to 32 m/min at 1460°C, the residual magnesium increased from 0.040% to 0.046%.

4. Advanced Equipment: CE Certified Reliability

To implement these scientific insights, a high-precision, stable Wire Feeder is essential. Our feeding systems are engineered to handle complex linear interpolation logic, allowing for real-time speed adjustments based on temperature fluctuations (V = 25 + 0.17 ×(T_actual－1420)).

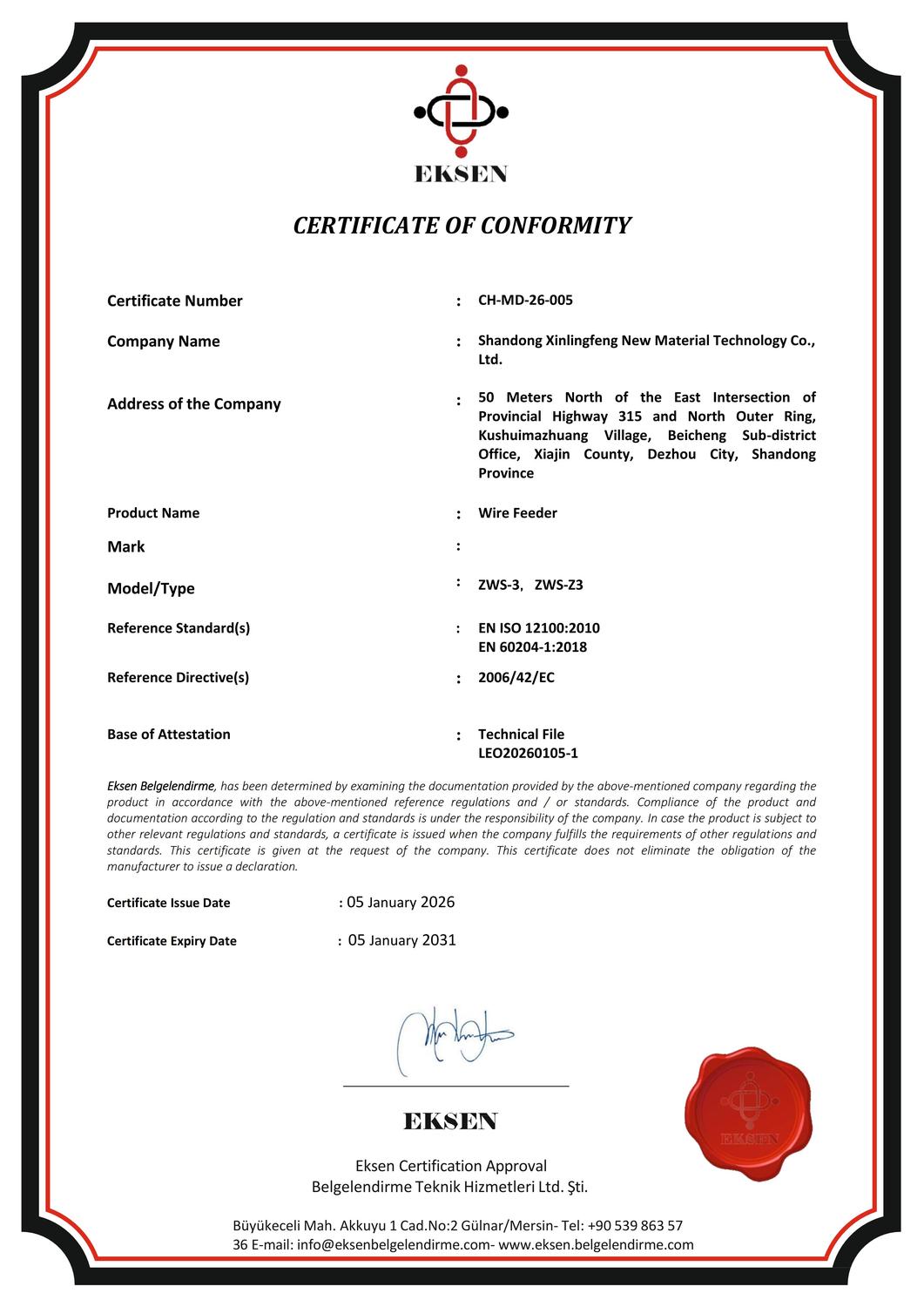

* Global Quality Standards: Our wire feeders have obtained the European Union CE Certification, ensuring compliance with international safety and performance standards for global foundry operations.

* Intelligent Control: The system can automatically optimize feeding speeds based on steel belt thickness and ladle liquid levels to maintain a consistent reaction depth.

Conclusion

The essence of process control is "using speed to compensate for temperature's impact on the gas film". By matching our CE-certified feeding technology with scientifically calculated speeds, foundries can achieve stable magnesium absorption and superior casting quality across all temperature ranges.
