Ladle Design for Optimal Spheroidization: Dam vs. Pit Type

Beyond the Wire: Why Your Ladle Design is the Secret to Stable Spheroidization

In the ductile iron foundry, even the highest quality nodulizer or alloy cored wire can fail if the treatment ladle is not correctly designed. While many focused solely on alloy chemistry, experienced foundrymen know that the physical geometry of the reaction zone is where the real "magic" happens.

1. The Geometric Standard: The H/D Ratio

Before looking at the bottom of the ladle, we must look at its overall shape. For wire feeding spheroidization, the height-to-internal diameter (H/D) ratio should ideally be ≥ 1.8. A taller, narrower ladle provides the necessary ferrostatic pressure to keep magnesium vapor in contact with the iron longer, significantly boosting the absorption rate.

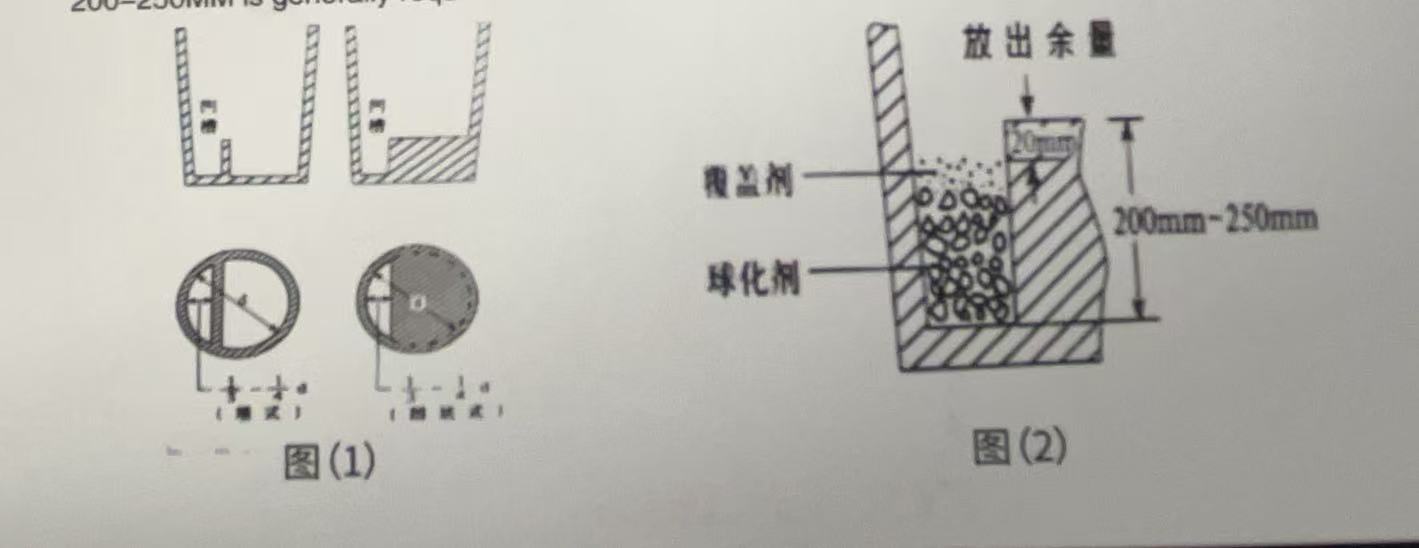

2. Two Professional Ladle Bottom Designs

To control the reaction and avoid premature oxidation of the alloy, two specific designs are recommended for the "Sandwich" or wire-feeding methods:

* The Dam Type (堤坝式): This design involves a refractory wall built across the ladle bottom. It is relatively simple to construct and easy to repair. It physically separates the alloy from the initial rush of molten iron, allowing the reaction to begin only after a certain liquid depth is reached.

* The Pit Type (凹坑式): A circular or semi-circular groove is fashioned into one corner of the ladle bottom. This is highly effective because it creates the deepest point for alloy placement, providing maximum pressure at the moment the reaction starts.

3. Optimizing the Reaction Zone (The 200-250mm Rule)

For those processing 500-1000kg of molten iron, the optimal depth for the reaction chamber is between 200mm and 250mm.

* Placement: The alloy should be placed within this pit or behind the dam, then covered with specialized covering agents or iron scrap.

* Reaction Control: This "chamber" ensures the spheroidizing agent is submerged, preventing it from floating to the surface where magnesium would simply burn off into the atmosphere.

4. Pouring Position and Temperature

It is not just about where the alloy sits, but where the iron hits. The molten iron should be poured onto the side opposite the alloy pocket. Additionally, for continuous treatment, the ladle temperature must be monitored; if the ladle has cooled, the treatment temperature should be raised by 20-30°C to maintain stable results.

Conclusion:

Consistent nodularity is a combination of high-quality materials and precise engineering. By implementing a Dam or Pit style ladle bottom, foundries can reduce alloy consumption and achieve more predictable metallurgical results.
