Optimizing Magnesium Absorption in Ductile Iron Production

Mastering the Physics of Wire Feeding: A Deep Dive into Magnesium Absorption

In the production of high-quality ductile iron, the efficiency of the spheroidization process is measured by the Magnesium (Mg) absorption rate. Low absorption leads to higher production costs and inconsistent casting quality. At Shandong Xinlingfeng, we believe that understanding the mechanical and thermal dynamics of wire feeding is the first step toward optimization.

1. The Thermal Dynamics of Feeding Speed

The goal of feeding alloy cored wire is to ensure the magnesium is released at the maximum possible depth to utilize the ferrostatic pressure of the molten iron.

* The Bottom-Melting Principle: The feeding speed must be synchronized with the melting rate of the steel sheath. Ideally, the wire should reach a point approximately 100mm from the ladle bottom before the core material is exposed.

* The Risk of Early Release: If the speed is too slow, the magnesium—which has a boiling point of only 1107°C—will vaporize in the upper layers of the 1450°C iron. This vapor escapes almost instantly, resulting in "fading" and poor nodularity.

* The Risk of Impact: Conversely, excessive speed may cause the wire to strike the bottom of the ladle, potentially damaging the refractory lining and causing erratic reaction pulses.

2. Why Ladle Geometry is Non-Negotiable

Foundry engineers often overlook the Height-to-Diameter (H/D) ratio of their treatment ladles.

* The ≥ 1.8 Standard: We recommend an H/D ratio of at least 1.8.

* Pressure and Contact Time: A taller, narrower ladle increases the hydrostatic pressure at the bottom. This pressure raises the boiling point of magnesium, keeping it in a liquid state longer. Furthermore, the magnesium bubbles have a longer path to travel to the surface, increasing the contact time with the molten iron and allowing for more thorough absorption.

3. Safety and Yield: Managing the Reaction Zone

The reaction between magnesium and iron is exothermic and generates significant gas volume.

* The 400mm Buffer: To prevent the "volcano effect"—where molten iron is ejected from the ladle—the liquid level must be maintained at a minimum of 400mm below the rim.

* Surface Turbulence: This safety margin allows the energy of the reaction to dissipate within the ladle. Reducing splash not only protects workers but also ensures that the carefully calculated alloy additives stay in the iron rather than ending up as slag on the floor.

4. Troubleshooting Common Spheroidization Failures

If you are still experiencing low nodularity, check the following:

* Sulfur Content: High base sulfur (S> 0.03%) consumes magnesium rapidly for desulfurization before spheroidization can occur.

* Ladle Preheating: Cold ladles can cause the magnesium reaction to be sluggish initially and then dangerously violent as the temperature equalizes.

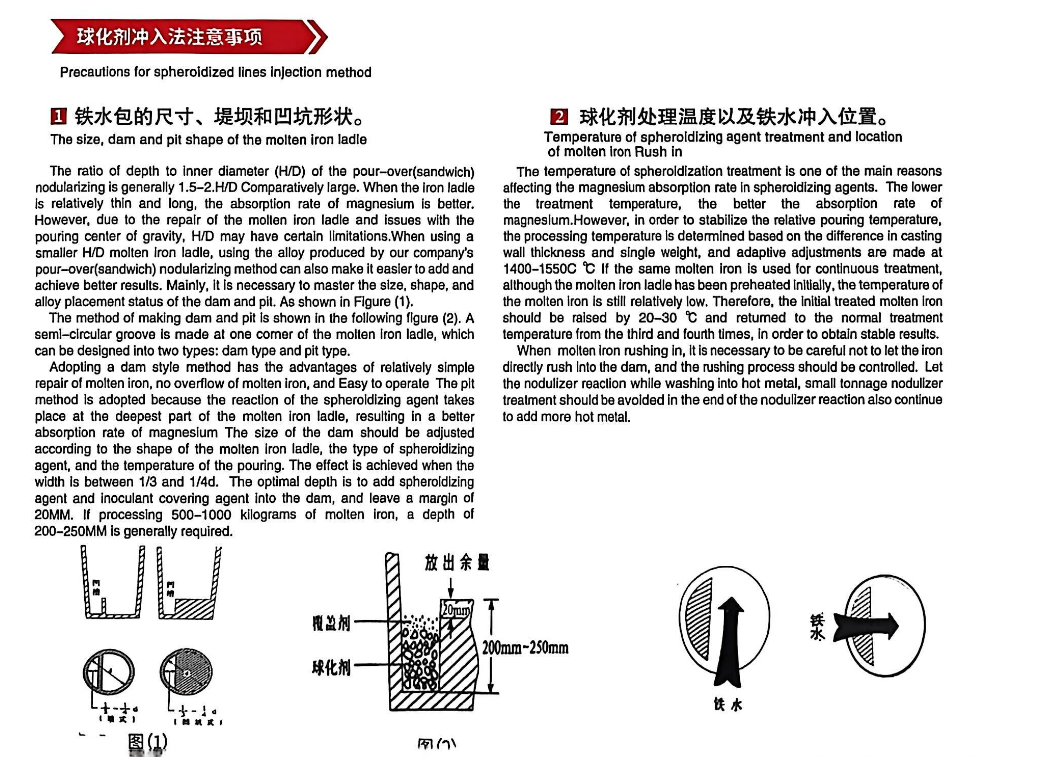

* Covering Materials: Ensure the dam at the bottom of the ladle is correctly shaped to hold the nodulizer if using the pour-over method in conjunction with wire feeding.

Consistent spheroidization is not a matter of luck; it is a matter of precise metallurgical control. By focusing on feeding depth, ladle geometry, and safety heights, foundries can achieve higher yield and lower costs.
