Optimizing Ductile Iron Production: A 3-Step Guide to Cored Wire Process Excellence

Optimizing Ductile Iron Production: A 3-Step Guide to Cored Wire Process Excellence

In the competitive landscape of modern foundry operations, the Cored Wire Process has emerged as the premier solution for nodularization and inoculation. To help our global partners achieve higher precision and lower costs, we have summarized our core expertise into a 3-Step Optimization Strategy based on years of successful field implementations.

Step 1: Mechanical Excellence – The Foundation of Stability

A successful reaction begins with a high-performance mechanical setup. Our data shows that controlling the reaction environment is key to maximizing magnesium (Mg) recovery.

* Airtight Sealing: To prevent the escape of Mg vapors, we recommend a 100% sealed connection between the treatment ladle and the cover. Utilizing flexible cover systems and ceramic fiber gaskets ensures a tight fit, even with ladle surface irregularities.

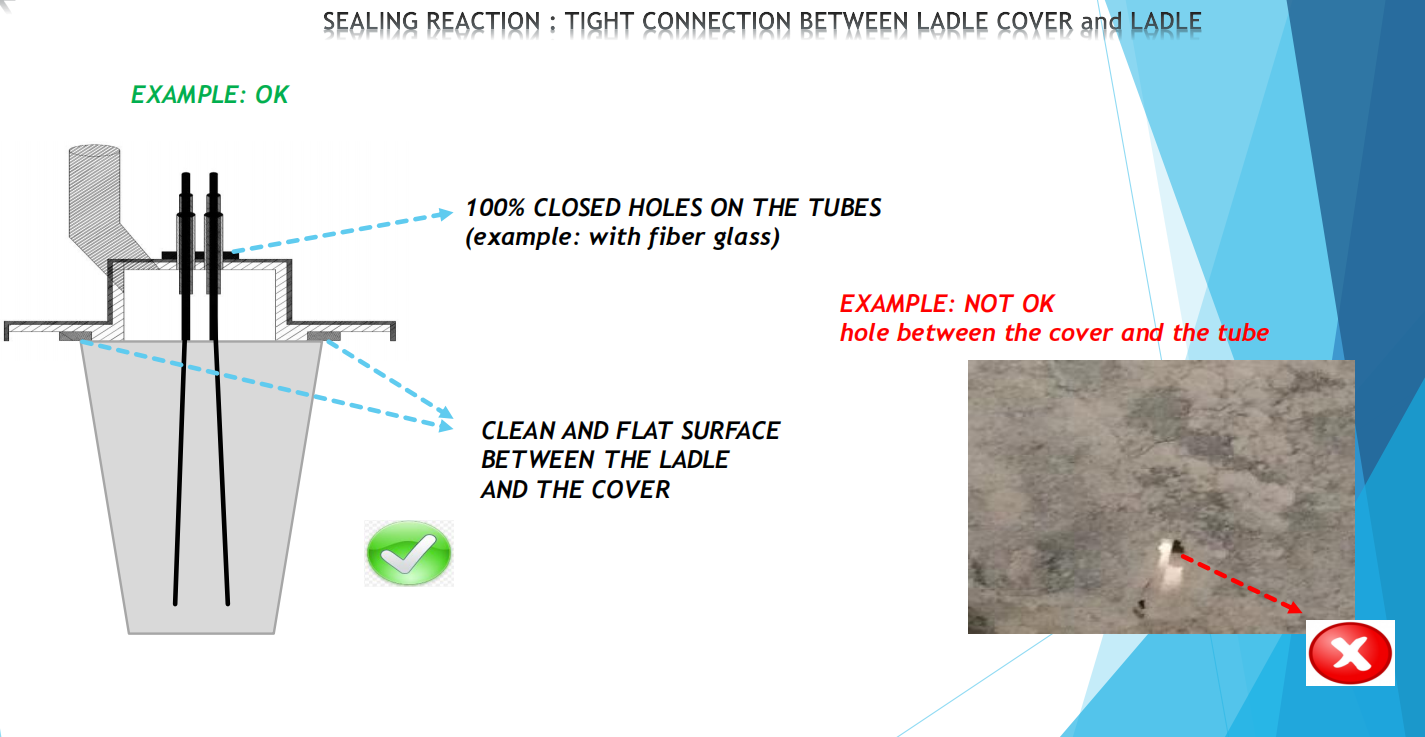

Image Caption: Proper sealing (left) prevents magnesium vapor loss, whereas gaps in the setup (right) significantly reduce efficiency.

* Verticality with "Black Box" Technology: The precision of the wire's entry angle is critical. Using a guiding tube system (such as the Centauro "Black Box") ensures the wire stays vertical, reaching the bottom of the melt for a stable, deep-seated reaction.

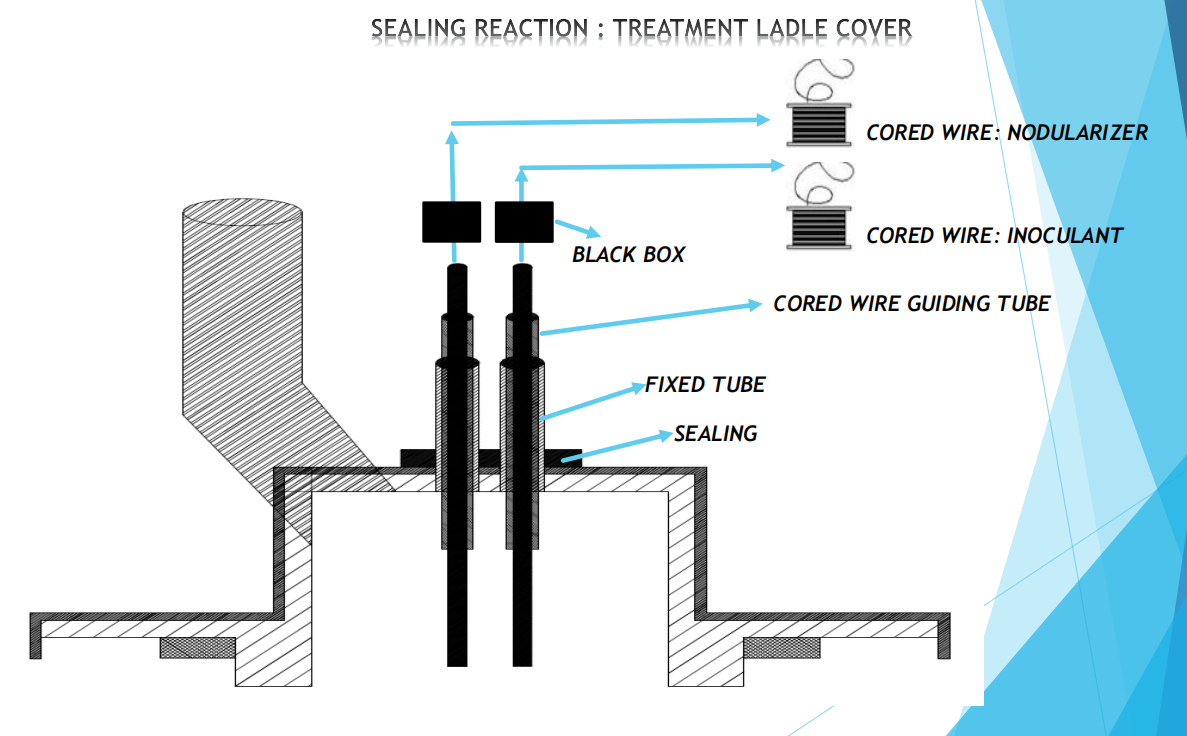

Image Caption: Schematic of the Cored Wire Guiding System featuring the "Black Box" for optimized verticality and multi-wire (Nodularizer & Inoculant) feeding.

* Optimized Ventilation: Proper ventilation through "tube-in-tube" designs prevents the intake of "false air," balancing the pressure during the high-energy reaction phase.

Step 2: Wire Selection – Why Alloy Matters

Choosing the right chemistry for your wire is the difference between a clean melt and a slag-heavy process.

* FeSiMg Alloy Wire vs. Pure Mg: While pure magnesium wires are common, they often cause violent reactions and excessive splashing. In contrast, FeSiMg alloyed wires offer a significantly quieter reaction, leading to higher Mg yield and more consistent residual magnesium (Mg_rest) levels.

* Reducing Dross and Slag: By using high-quality alloyed cores, foundries can reduce the formation of MgO·SiO2 (dross). This leads to cleaner iron, better fluidity, and improved castability, ultimately reducing scrap rates.

Step 3: Precise Process Parameters

The "software" of the feeding process—the parameters—must be fine-tuned to the specific chemistry of your melt.

* Feeding Speed: The speed must be calibrated to the ferro-static pressure (height of the metal). If the speed is too low, the wire reacts too high in the ladle; if too fast, it hits the bottom. We help customers find the "Sweet Spot" for maximum efficiency.

* Chemical Control: Strict monitoring of initial sulfur (S) levels and temperature is essential to calculate the exact meters of wire required, ensuring zero waste.

Proven Success: Global Project Highlights

Our methodologies have been validated in diverse foundry environments worldwide:

* Czech Republic (250kg): Achieved stable Mg_final of 0.041 – 0.047% using 13mm Rumag wire at only 6.2m per treatment.

* Germany (10–15 tons): Implemented a dual-wire system (16mm) running simultaneously, maintaining an average consumption of 11.5m/ton with exceptional consistency.

* Japan (1.4–3.4 tons): Consistently achieved Mg_final targets of 0.040 – 0.050% through process optimization.

Conclusion

By focusing on mechanical sealing, superior wire chemistry, and data-driven parameters, your foundry can achieve unparalleled stability in ductile iron production.

Looking to upgrade your feeding process? Contact our technical specialists to schedule a process audit.
