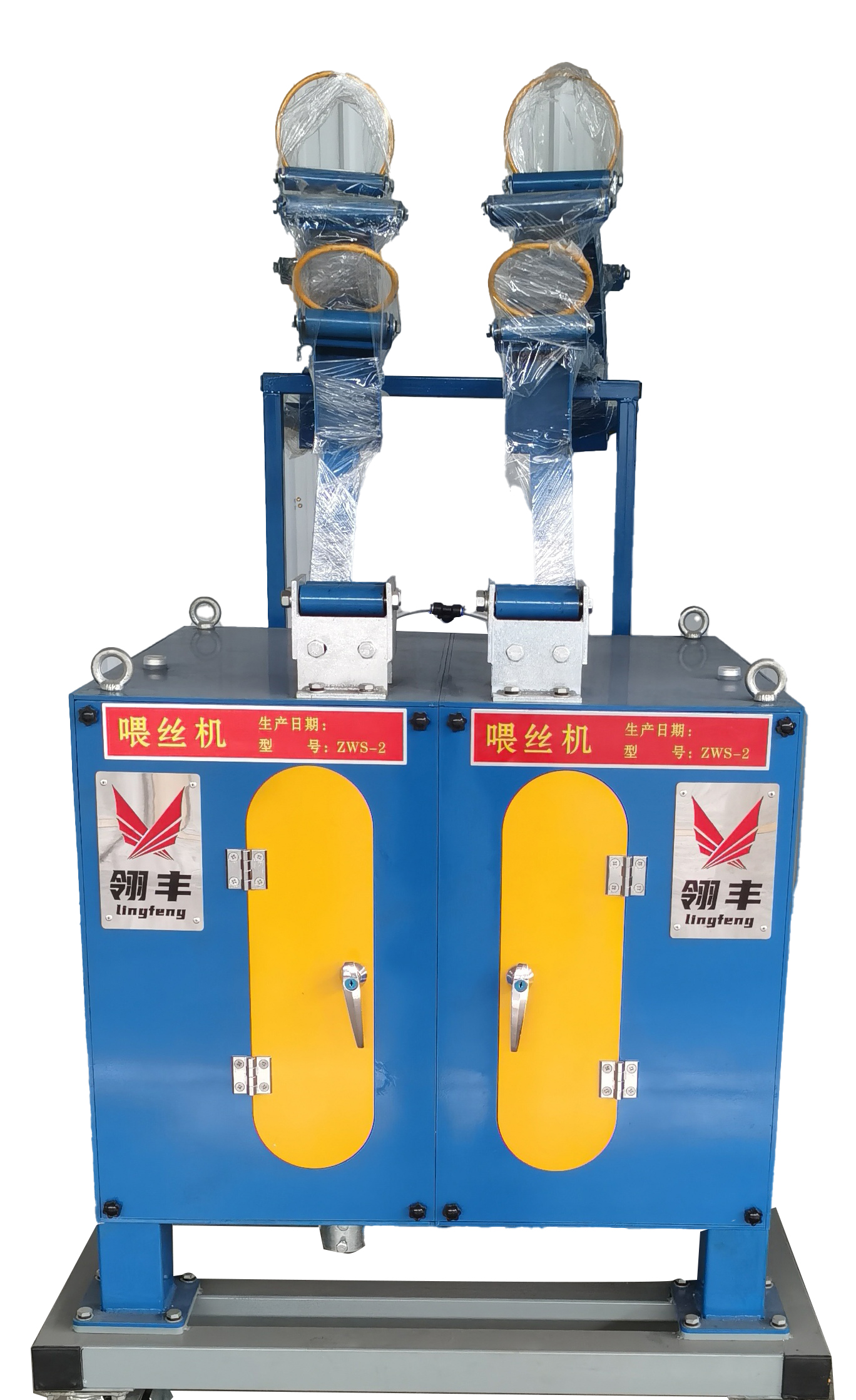

Wire Feeder

1. Advanced Control System (智能控制系统)

Our wire feeders are equipped with an intuitive PLC touch screen interface, allowing operators to pre-set feeding parameters such as speed, length, and retraction. The system supports automatic computing functions, which can transmit data to a central controller for precise metallurgical calculations and process tracking.

2. Multi-Line Independent Operation (多线独立运行)

Designed for high-capacity foundries, the equipment can be configured with double-line, four-line, or six-line systems. Each line can be controlled independently or simultaneously, providing maximum flexibility for different ladle sizes and alloy requirements.

3. Precise Speed & Tension Control (精准调速与张力)

* Variable Speed Range: Adjustable feeding speeds from 10 to 60 meters per minute, allowing for synchronization with the specific melting rate of the cored wire.

* Electronic Metering: High-accuracy digital counters ensure that the exact amount of alloy is delivered every time, minimizing material waste.

* Drive System: High-torque motors combined with pneumatic or mechanical pressure systems ensure a steady grip on the wire without slippage or deformation.

4. Technical Specifications (技术参数总结)

* Applicable Wire Diameter: Φ13±0.8 mm (Customizable for other sizes).

* Control Mode: Manual / Automatic / Remote PLC control.

* Power Supply: Customizable based on regional industrial standards (e.g., 380V/50Hz).

* Integration: Seamlessly integrates with Intelligent Wire Feeding Stations for full foundry automation.
